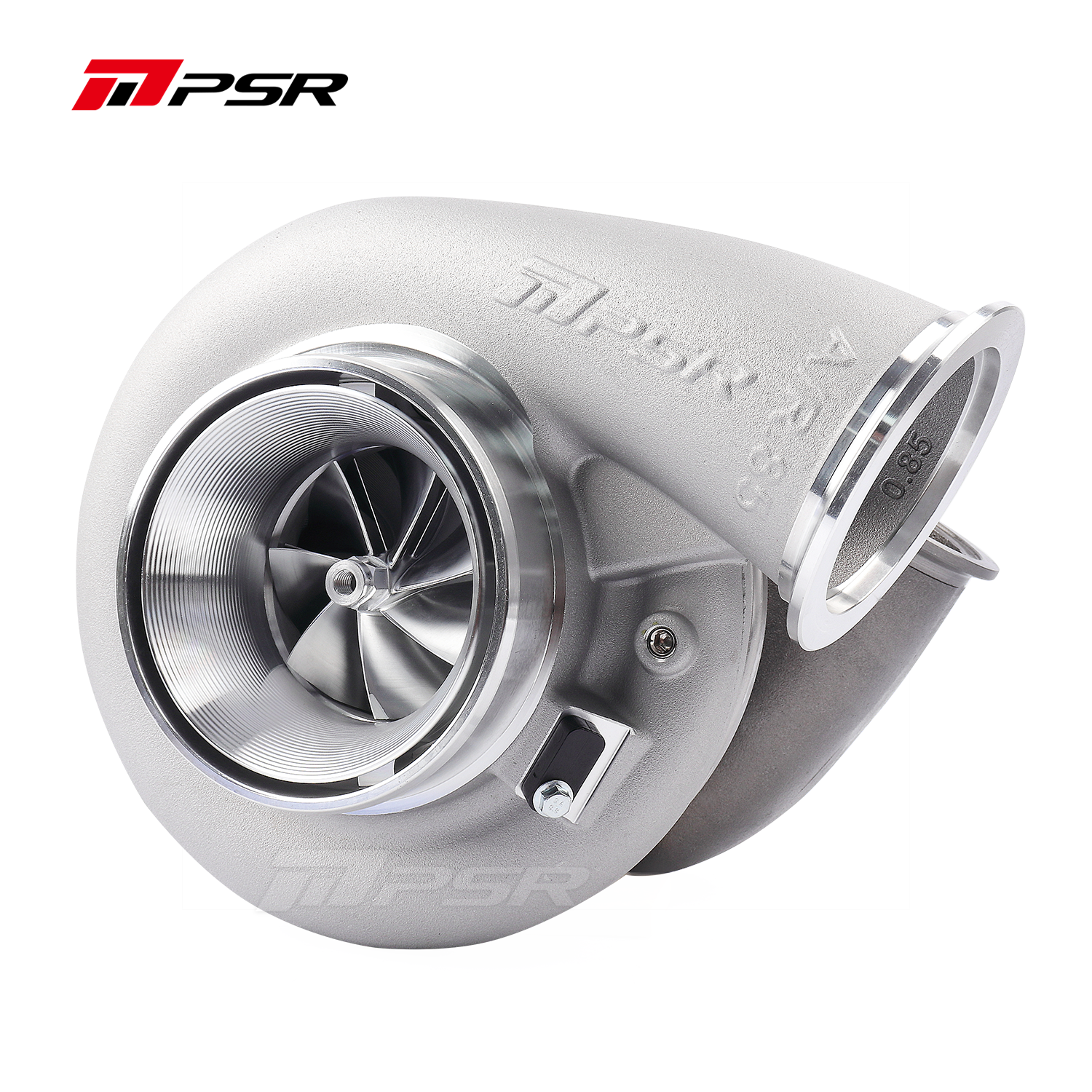

8085E Ball Bearing Turbo UP to 1600HP - Image 3
8085E Ball Bearing Turbo UP to 1600HP - Image 4
8085E Ball Bearing Turbo UP to 1600HP - Image 5
8085E Ball Bearing Turbo UP to 1600HP - Image 6
8085E Ball Bearing Turbo UP to 1600HP - Image 7

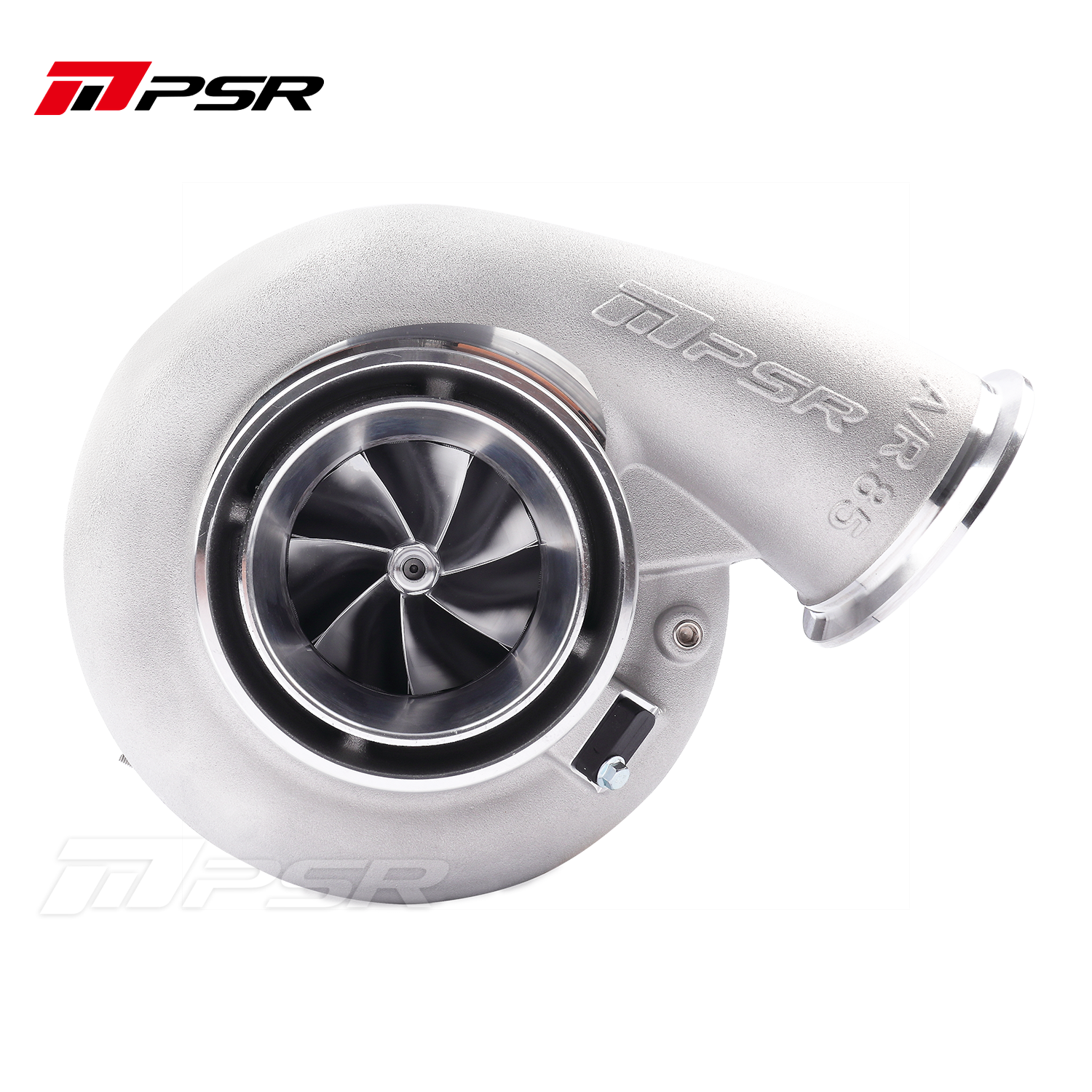

8085E Ball Bearing Turbo UP to 1600HP - Image 8
8085E Ball Bearing Turbo UP to 1600HP - Image 9
8085E Ball Bearing Turbo UP to 1600HP - Image 10
8085E Ball Bearing Turbo UP to 1600HP - Image 11
8085E Ball Bearing Turbo UP to 1600HP - Image 12

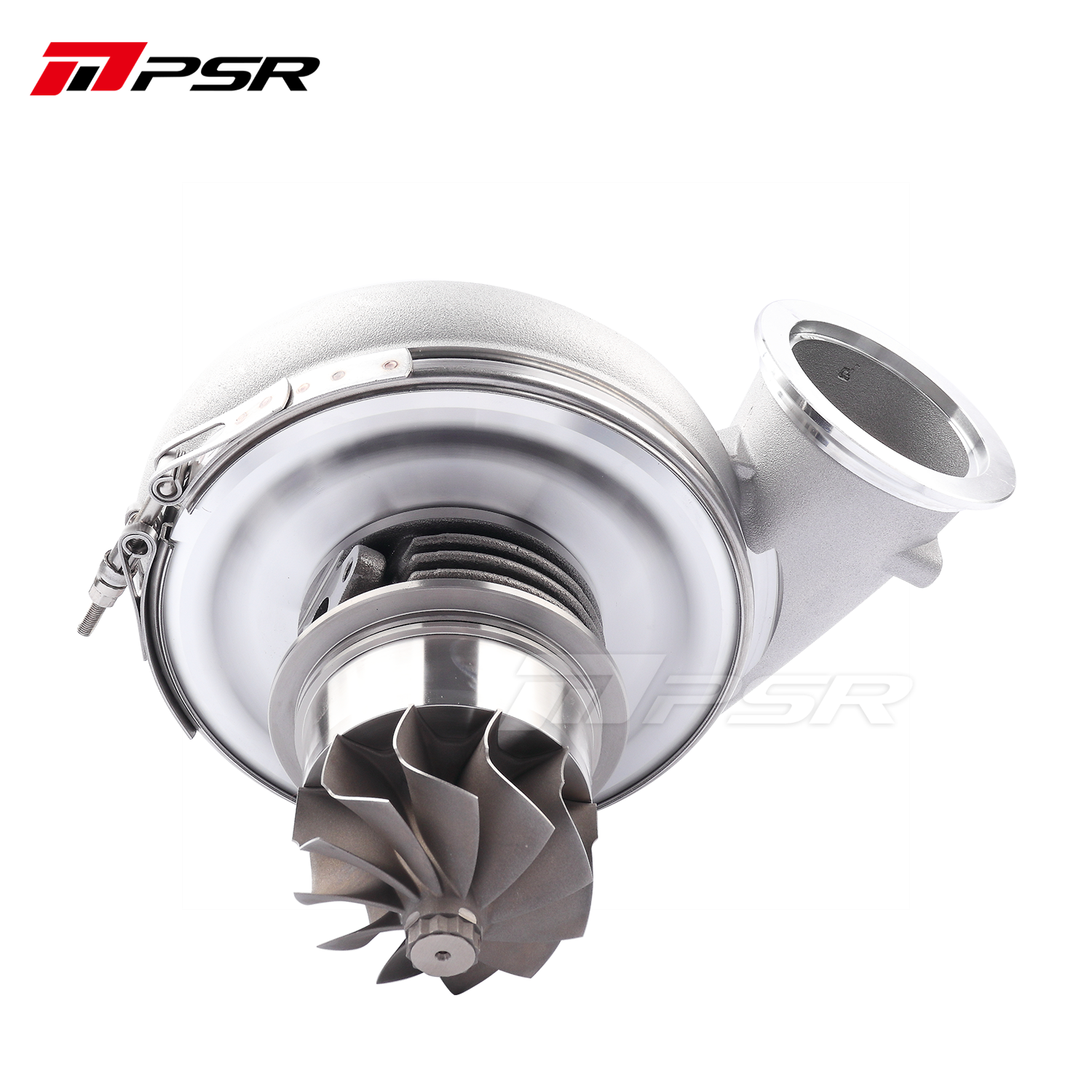

8085E Ball Bearing Turbo UP to 1600HP - Image 13
8085E Ball Bearing Turbo UP to 1600HP - Image 14
8085E Ball Bearing Turbo UP to 1600HP - Image 15

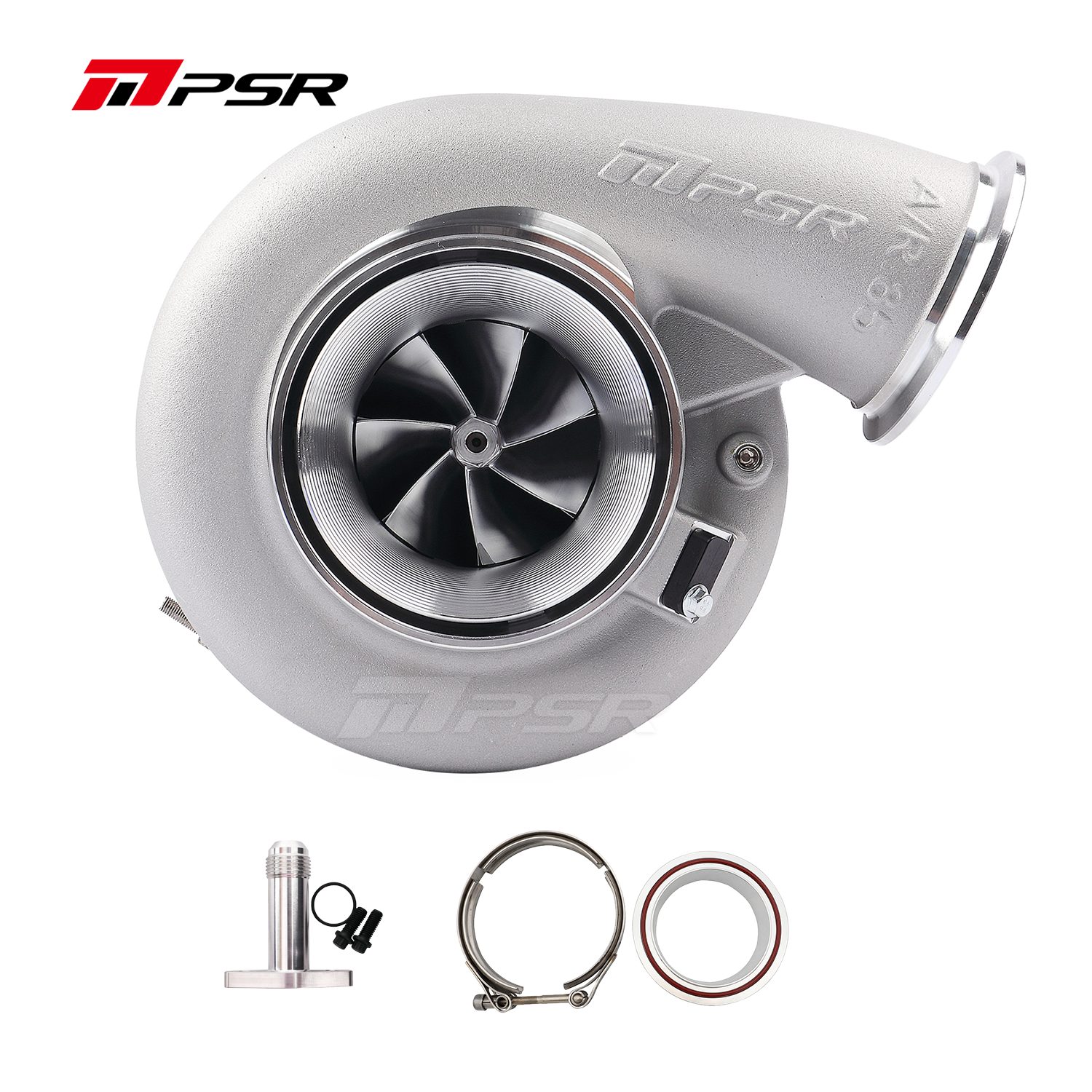

8085E Ball Bearing Turbo UP to 1600HP - Image 16
8085E Ball Bearing Turbo UP to 1600HP - Image 17
8085E Ball Bearing Turbo UP to 1600HP - Image 18
Facebook-f Twitter Pinterest-p Youtube

8085E Ball Bearing Turbo UP to 1600HP

US Price range: $1,099.99 through $1,749.99

Free standard delivery on orders over $100

View delivery & returns options

  • Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 11 Blade Turbine Wheel
  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 1600
SKU N/A Category Tags , ,

Description

  • Billet Compressor Wheel: 80.8 x 110.5mm, 7+7 Blade
  • Turbine Wheel: 85 x 89.5mm, 11 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
  • Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

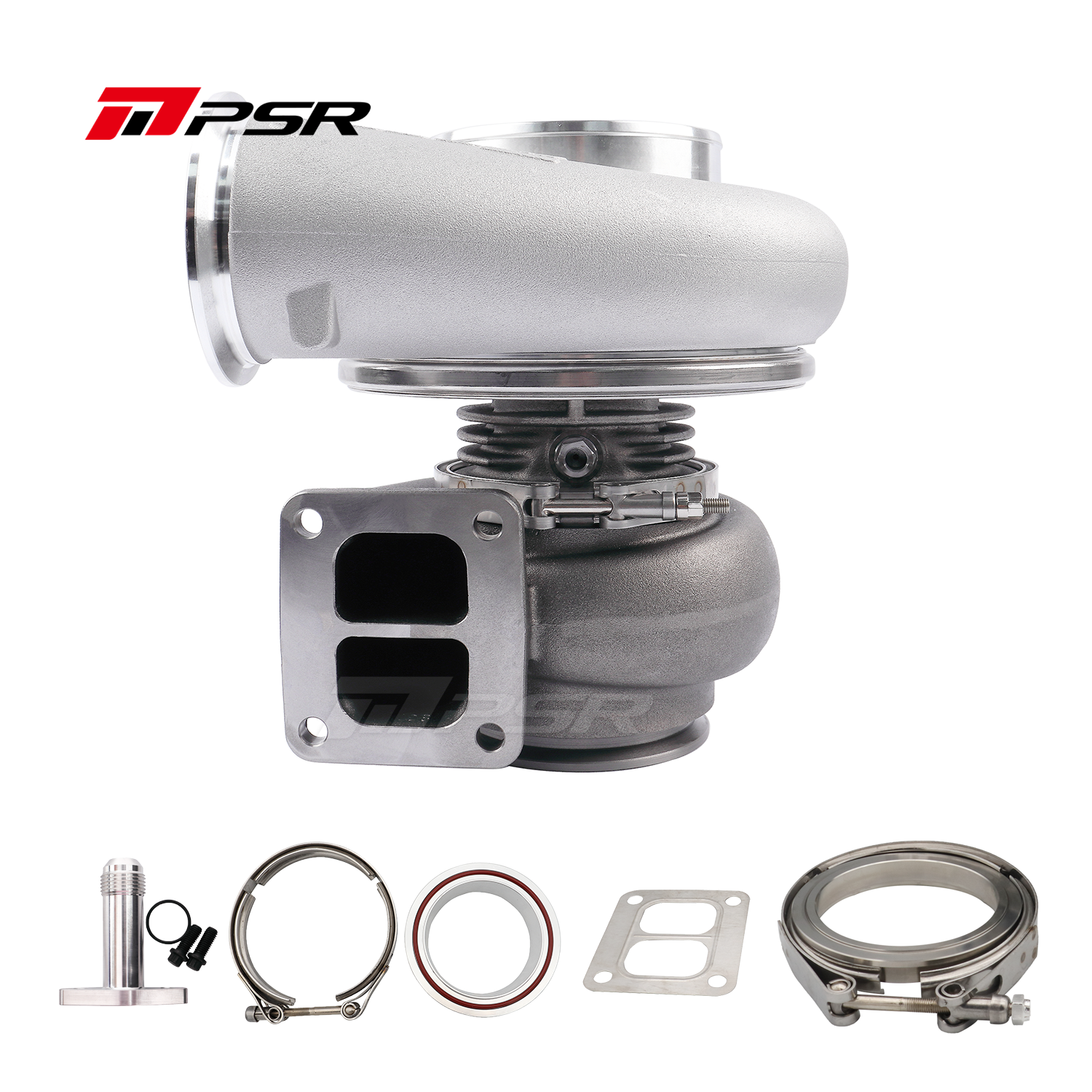

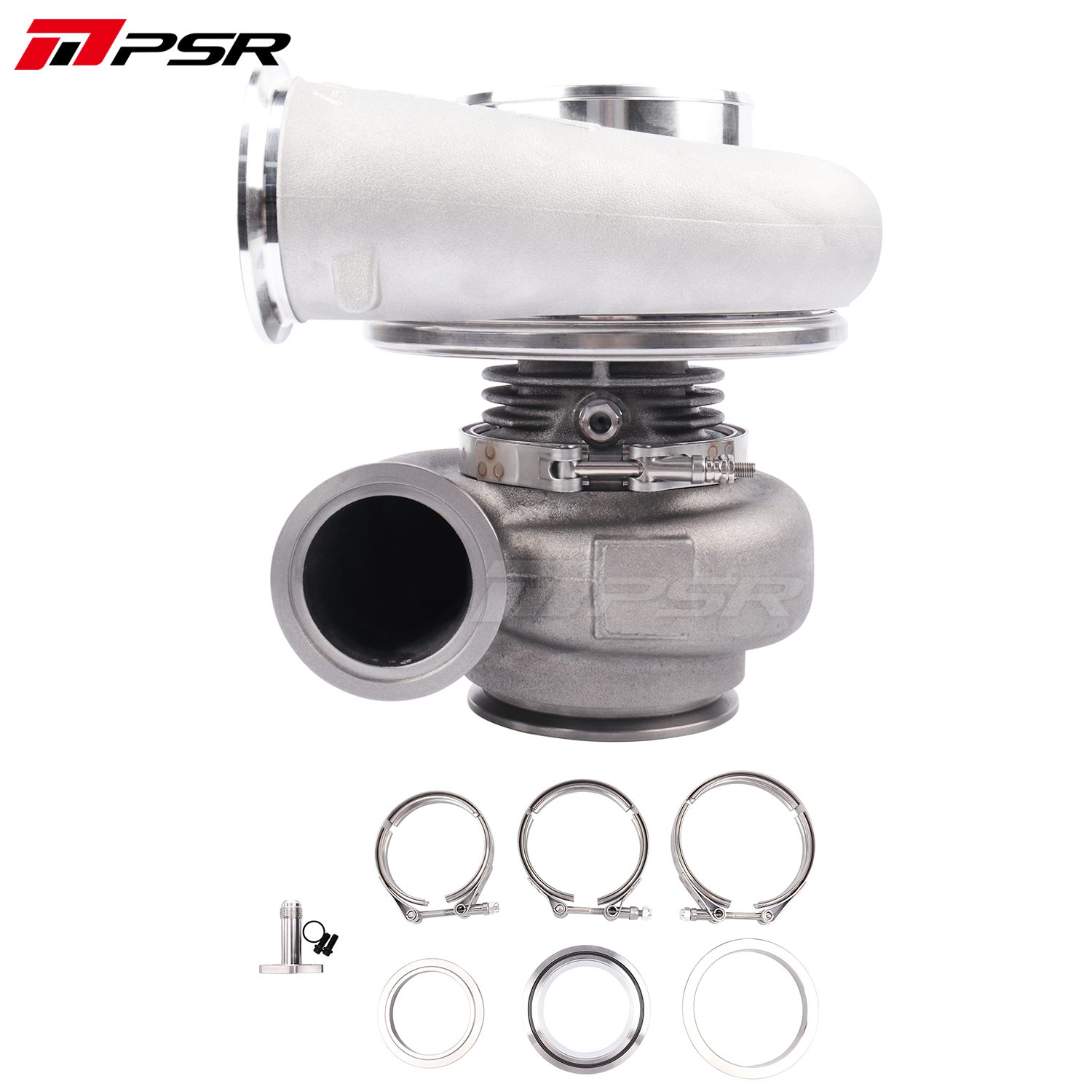

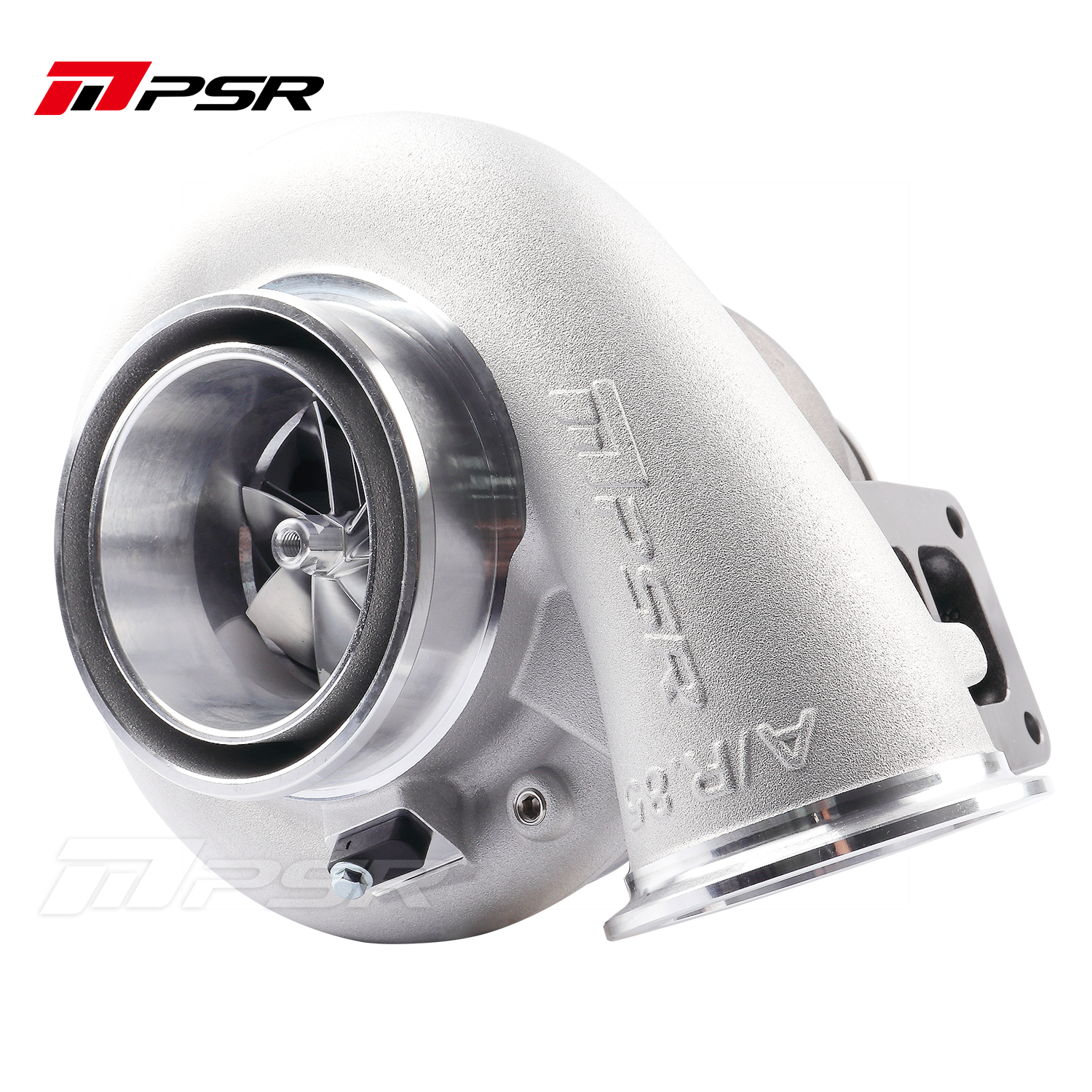

  • Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
  • The internal oil feed port is 0.9mm(Oil restrictor is no needed)
  • Oil feed fitting: 1/8-27 NPSF(Drawing)
  • Oil Drain: -12AN
  • Oil Drain Fitting: 12AN_EXTENDED

Additional information

Weight N/A
Dimensions N/A
Compressor Cover Option

Standard, T51R MOD, Without compressor housing
Turbine Housing Option

T4 Divided 1.28A/R, Dual V-Band 1.15A/R, Dual V-Band 1.28A/R, Without turbine housing
