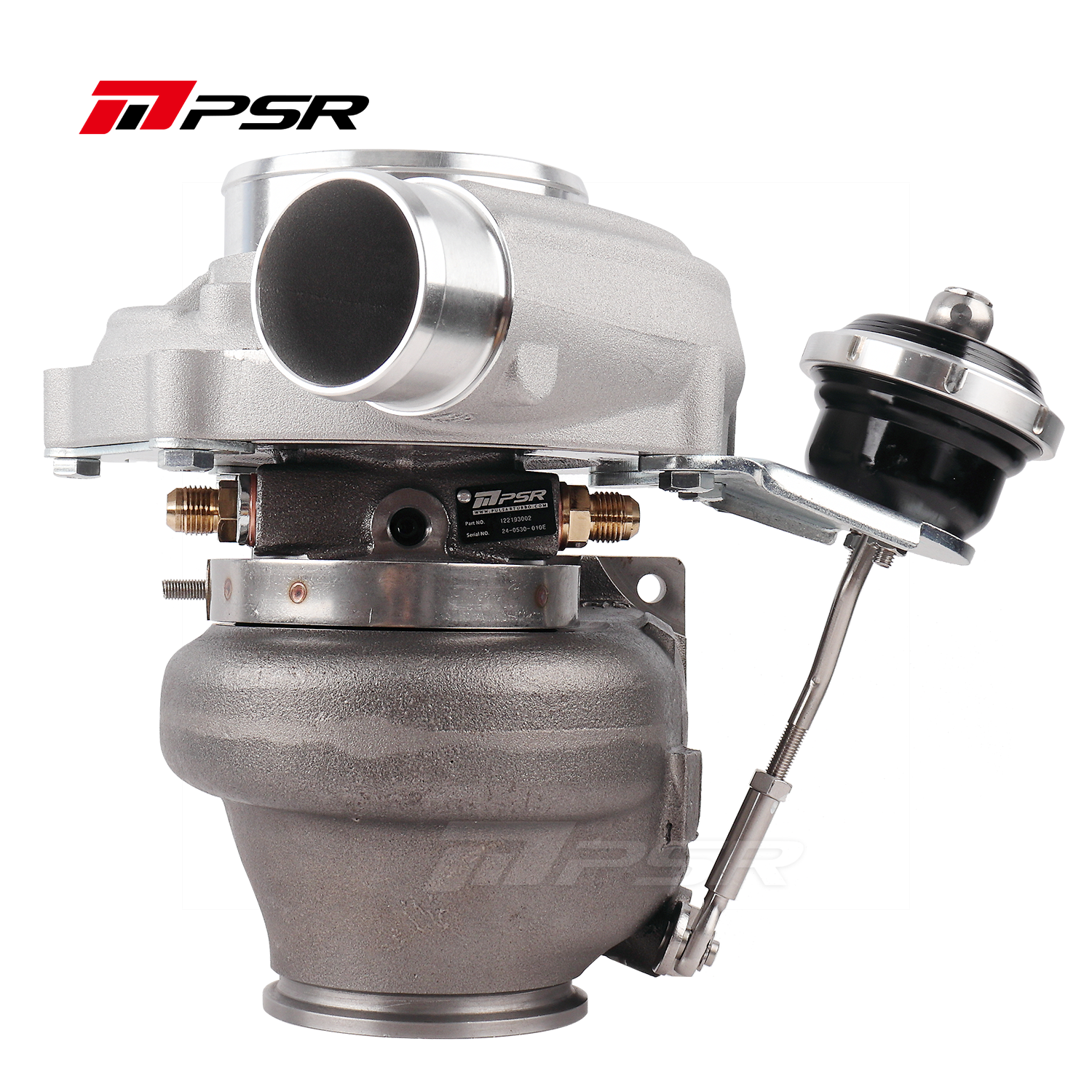

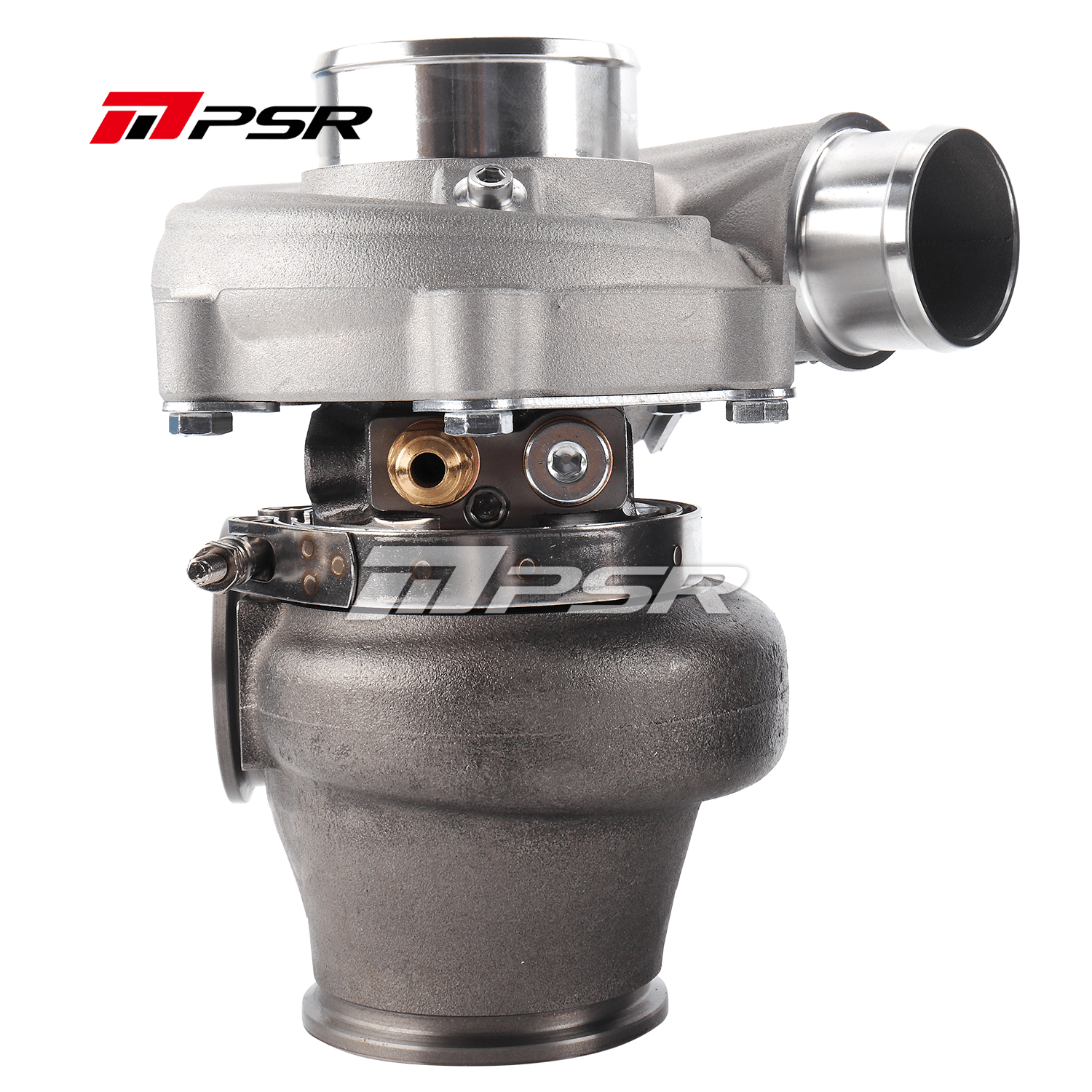

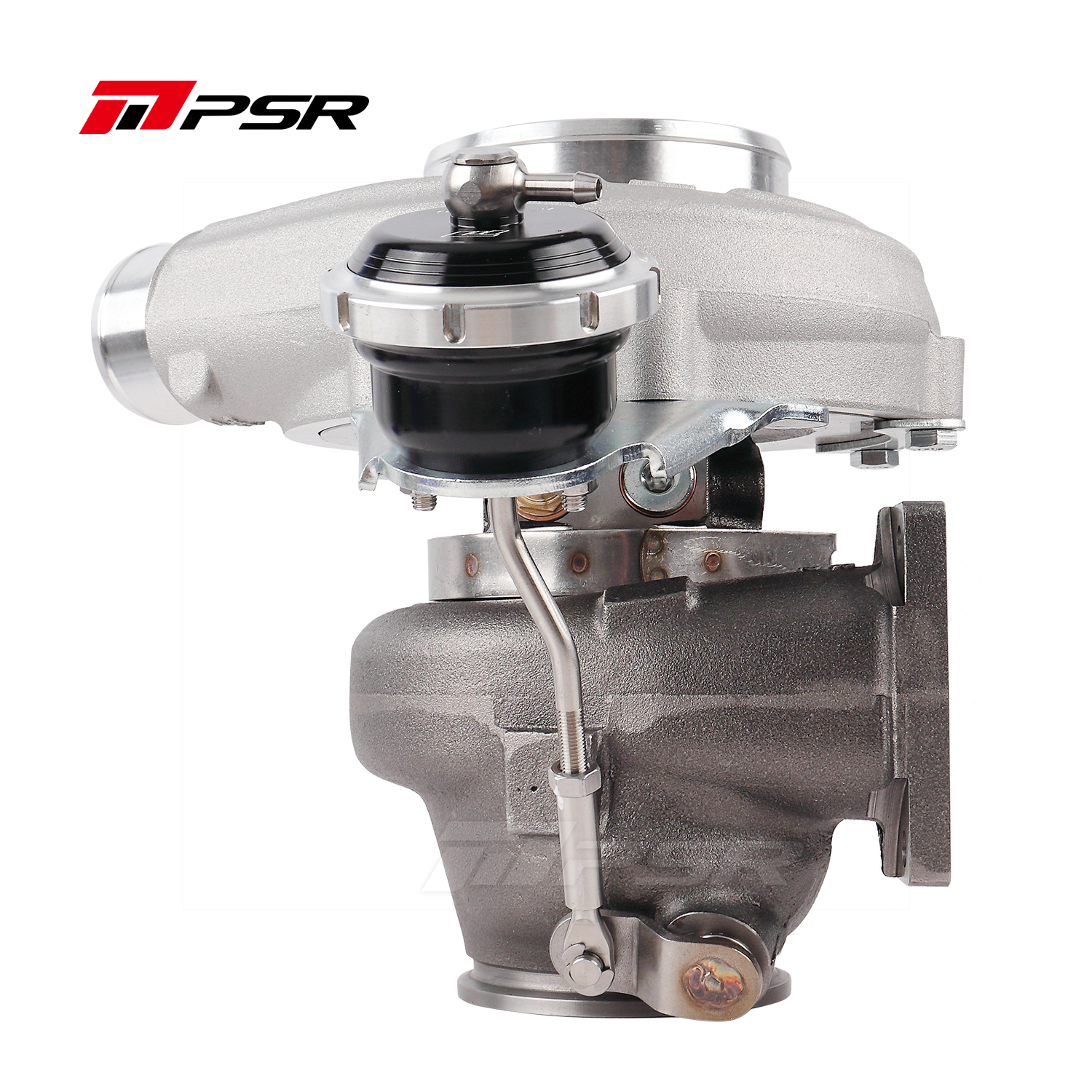

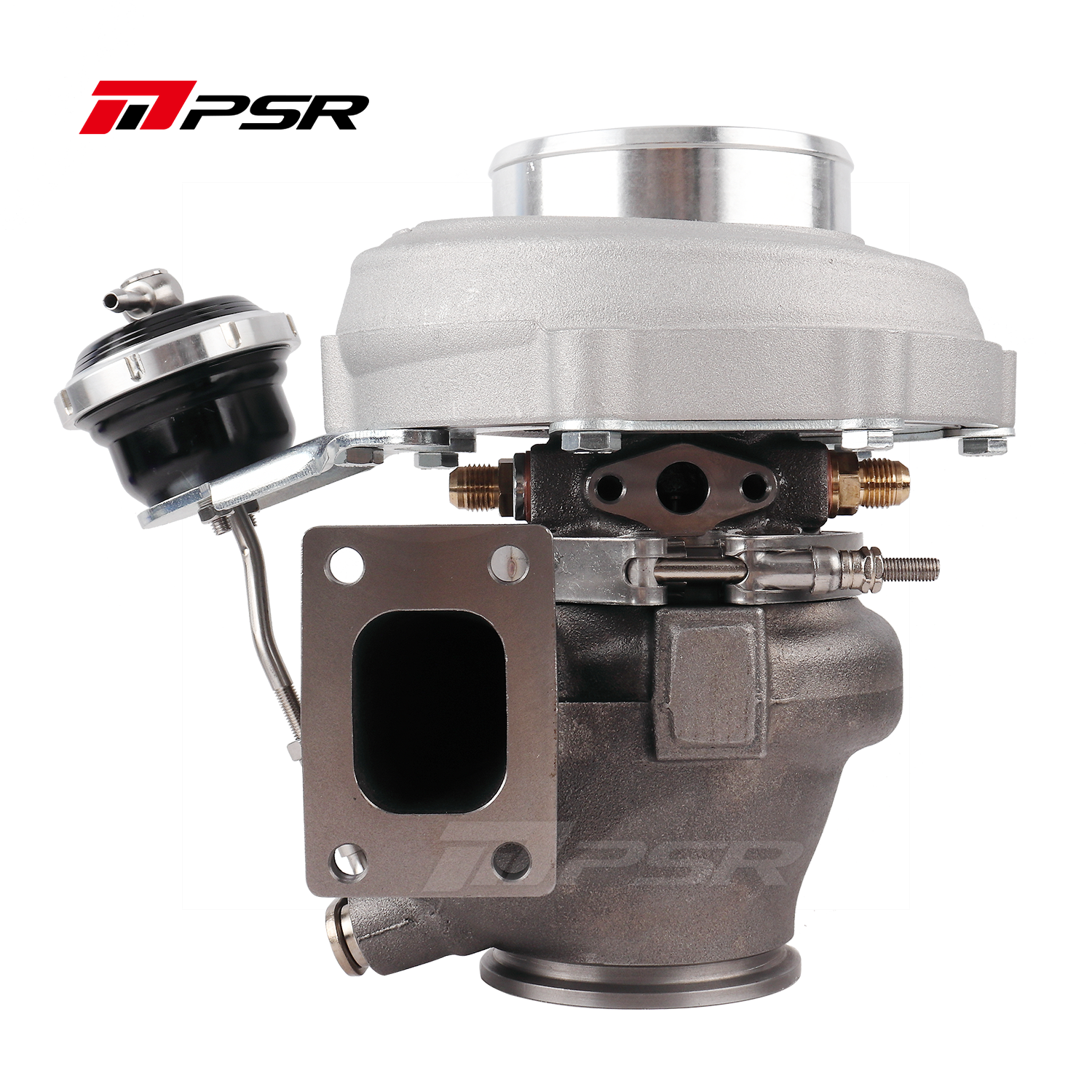

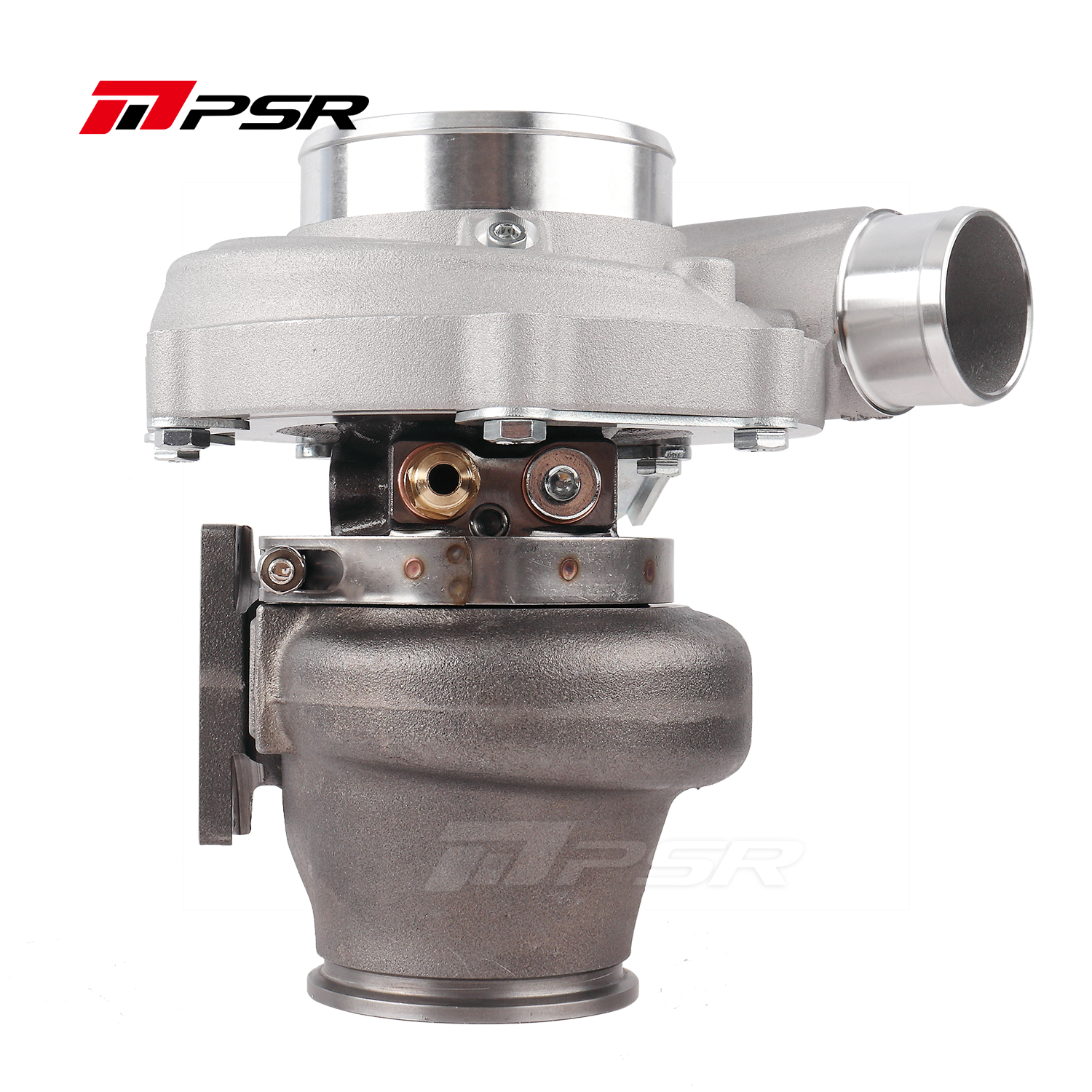

PSR 4849A With PTG Style Comp. wheel and PTG Style Trb. wheel Dual Ball Bearing Turbocharger HP Rating 550

US Price range: $641.24 through $1,183.24

Free standard delivery on orders over $100

View delivery & returns options

  • 9 Blade G-Aero Inconel 713c Turbine Wheel
  • Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
  • Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
  • Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
SKU N/A Category

Description

  • PTG series Flank Milled Compressor Wheel: 48*60mm
  • PTG series Turbine Wheel: 54*49mm
  • Compressor Inlet: 3″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange

Turbine Housing Style

  • Standard Turbine Housing
  • Stainless Steel Wrapped Turbine Housing — +$200 USD
  • Not Applicable — for configurations supplied without a turbine housing

(Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

Additional information

Weight N/A
Dimensions N/A
Compressor Housing Options

Standard, T51R Mod, without Compressor Cover
Turbine Housing Options

W/O Turbine Housing, .72A/R DUAL V-BAND W/O IWG, .72A/R T25 W/O IWG(+Vband to T25 Adapter), .72A/R T3 W/O IWG, .72A/R DUAL V-BAND IWG, .72A/R T25 IWG, .72A/R T3 IWG(+Vband to T3 Adapter), .92A/R DUAL V-BAND IWG, .92A/R T25 IWG(+Vband to T25 Adapter), .92A/R T3 IWG(+Vband to T3 Adapter), .49A/R DUAL V-BAND IWG, .49A/R T25 IWG(+Vband to T25 Adapter), .49A/R T3 IWG(+Vband to T3 Adapter)
Turbine Housing Style

Standard Turbine Housing, Stainless Steel Wrapped Turbine Housing, Not Applicable
