Description

• Billet Compressor Wheel: 73.9 x102.4mm, 7+7 Blade
• Turbine Wheel: 85 x 89.5mm, 11 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)

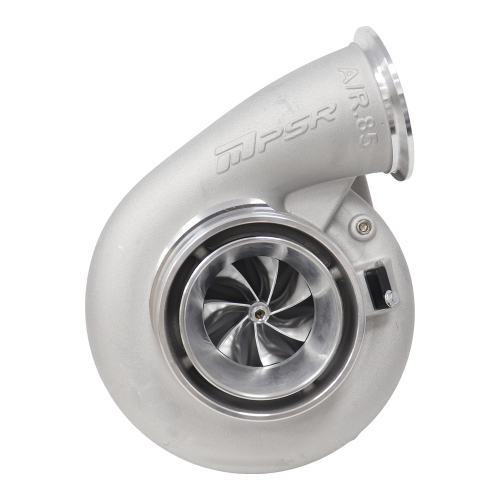

• Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

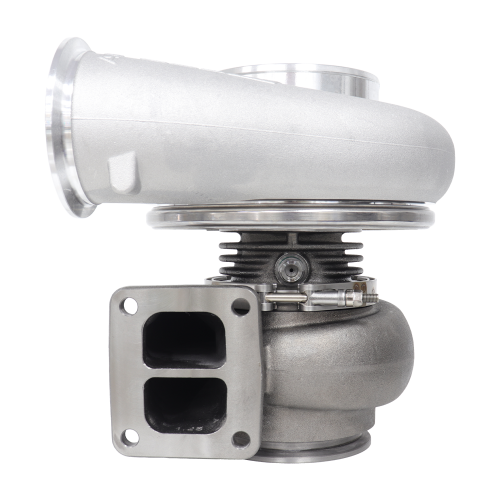

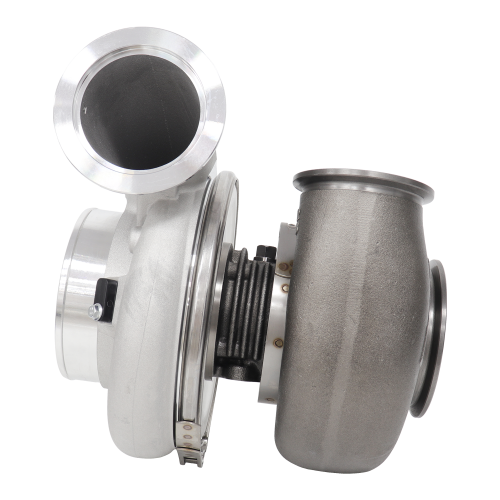

• Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
• The internal oil feed port is 0.9mm(An oil restrictor is not needed)
• Oil feed fitting: 1/8-27 NPSF(Drawing)
• Oil Drain: -12AN

Turbine Housing Style

• Standard Turbine Housing

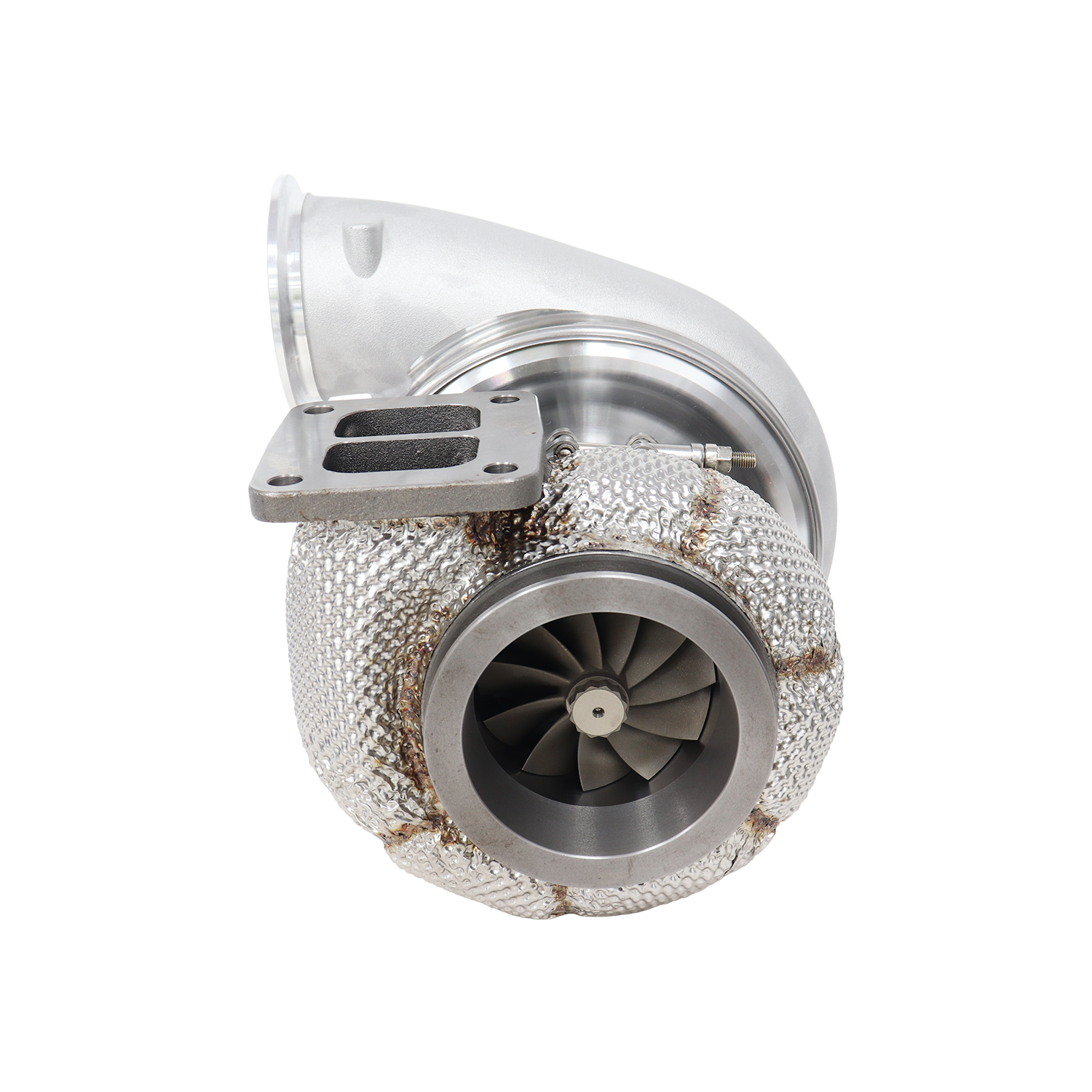

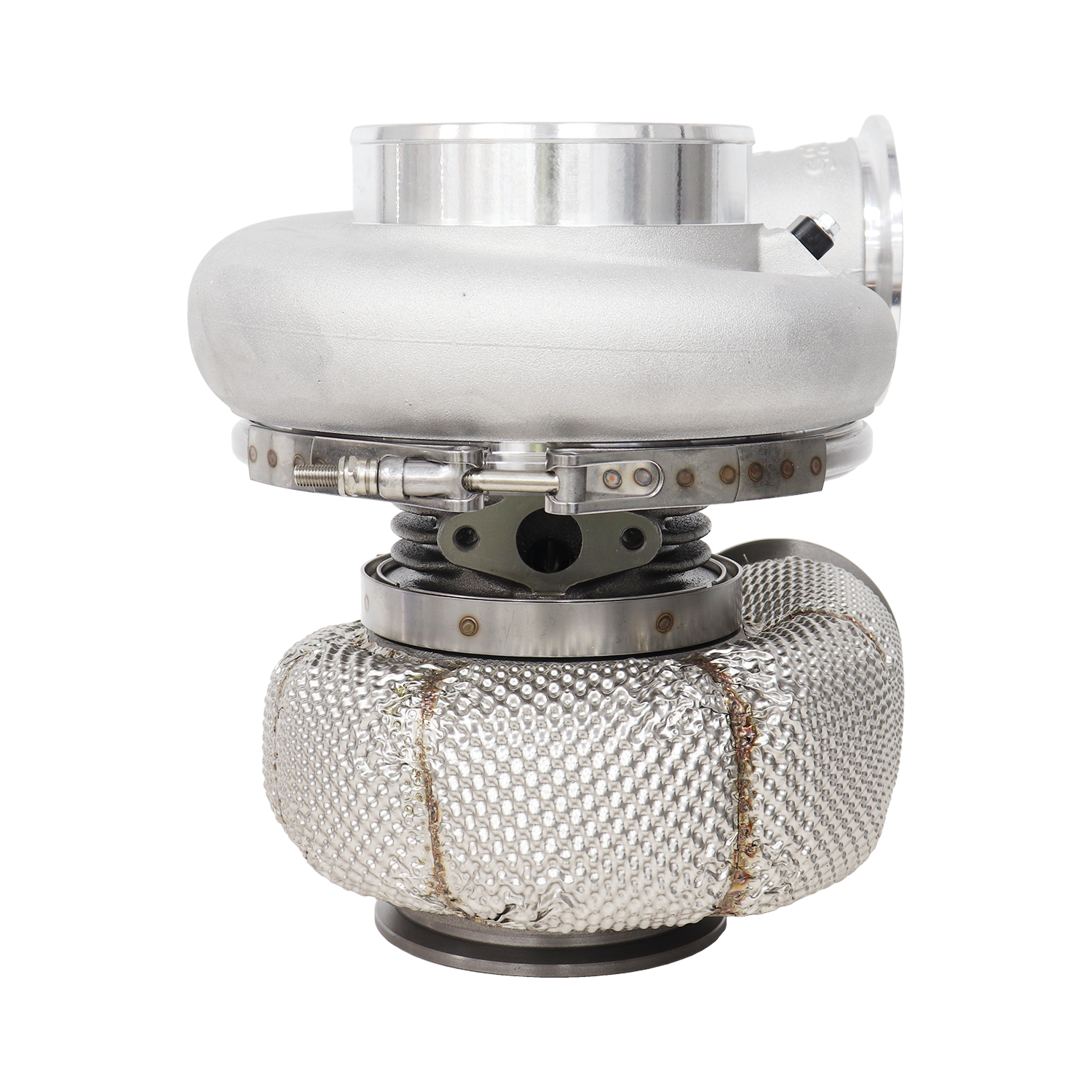

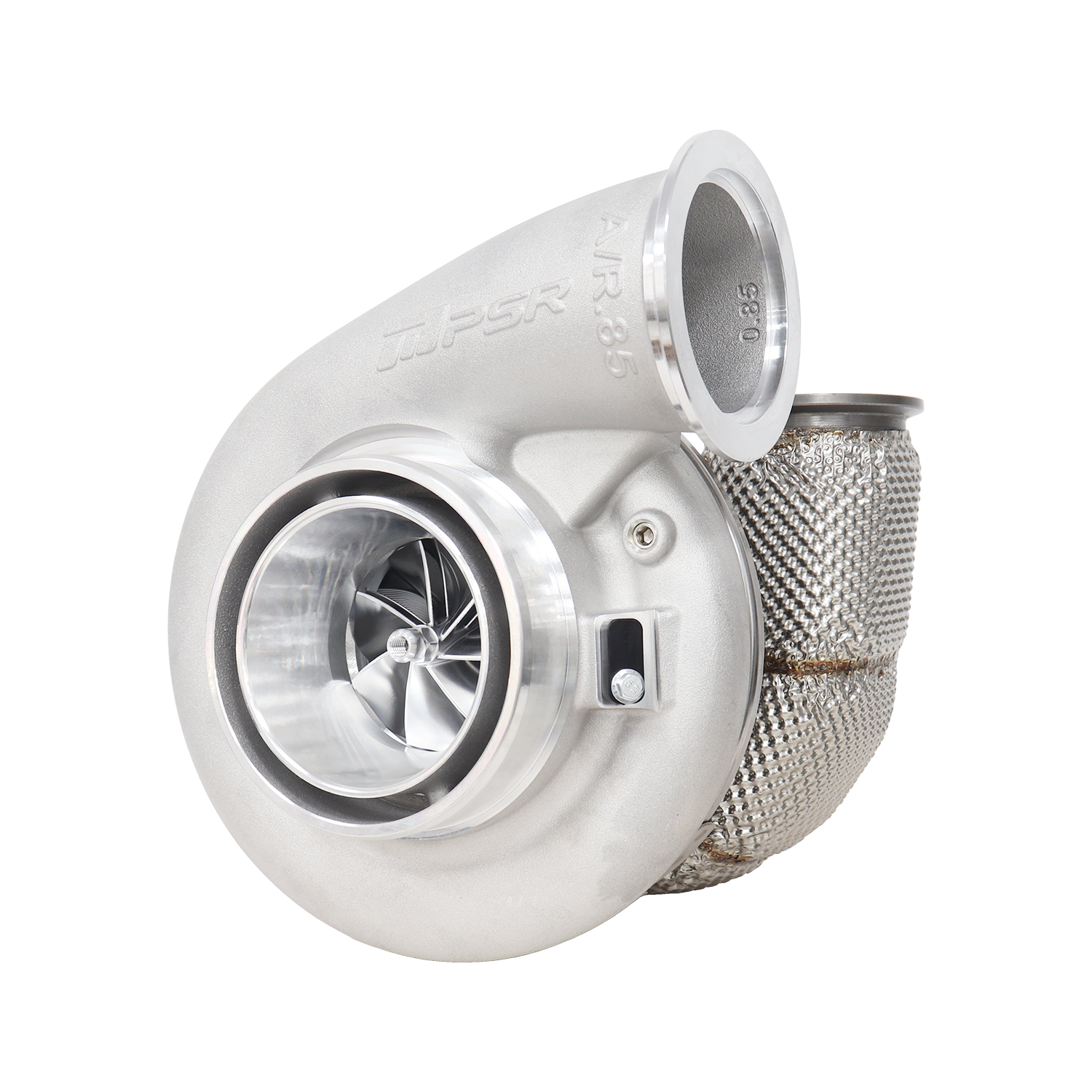

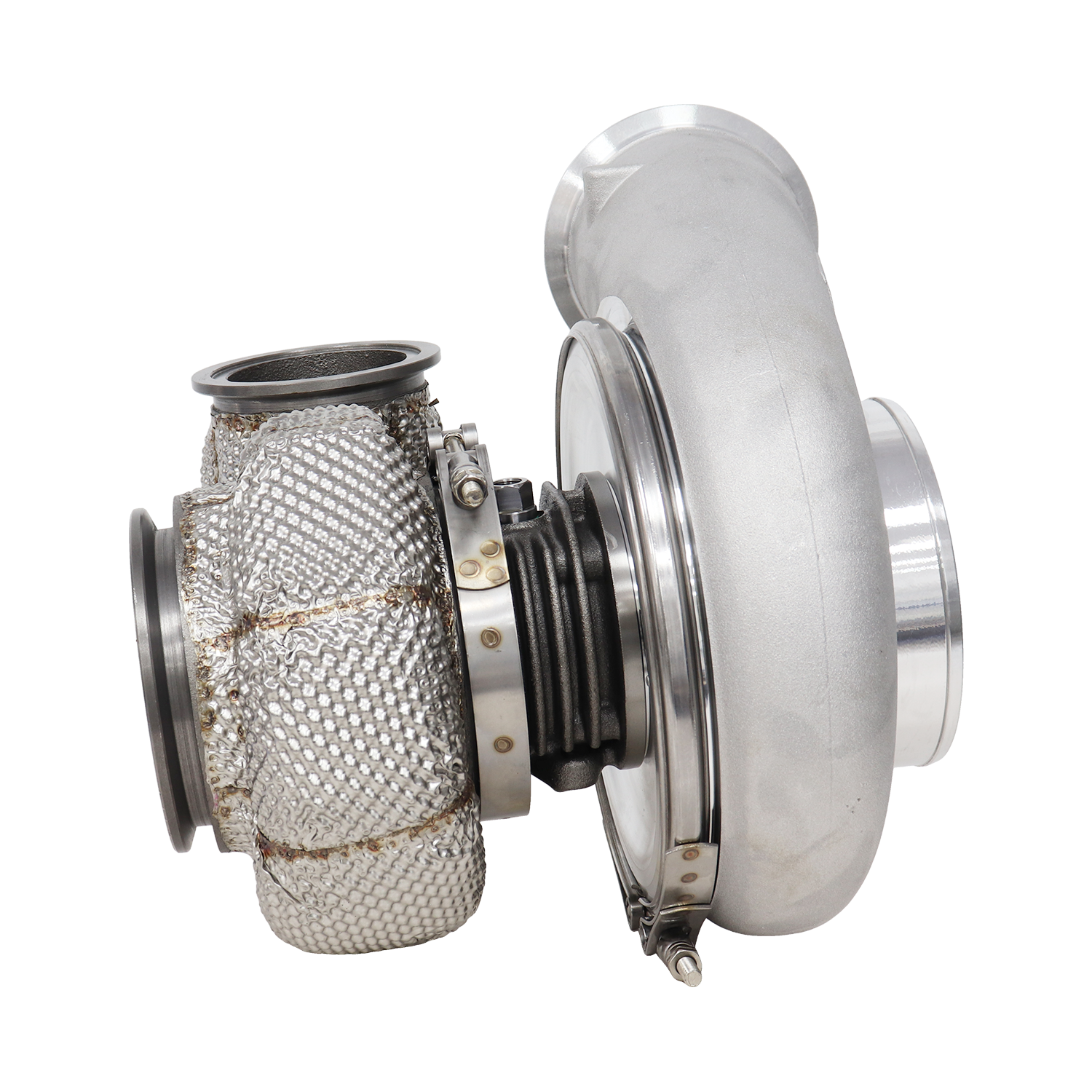

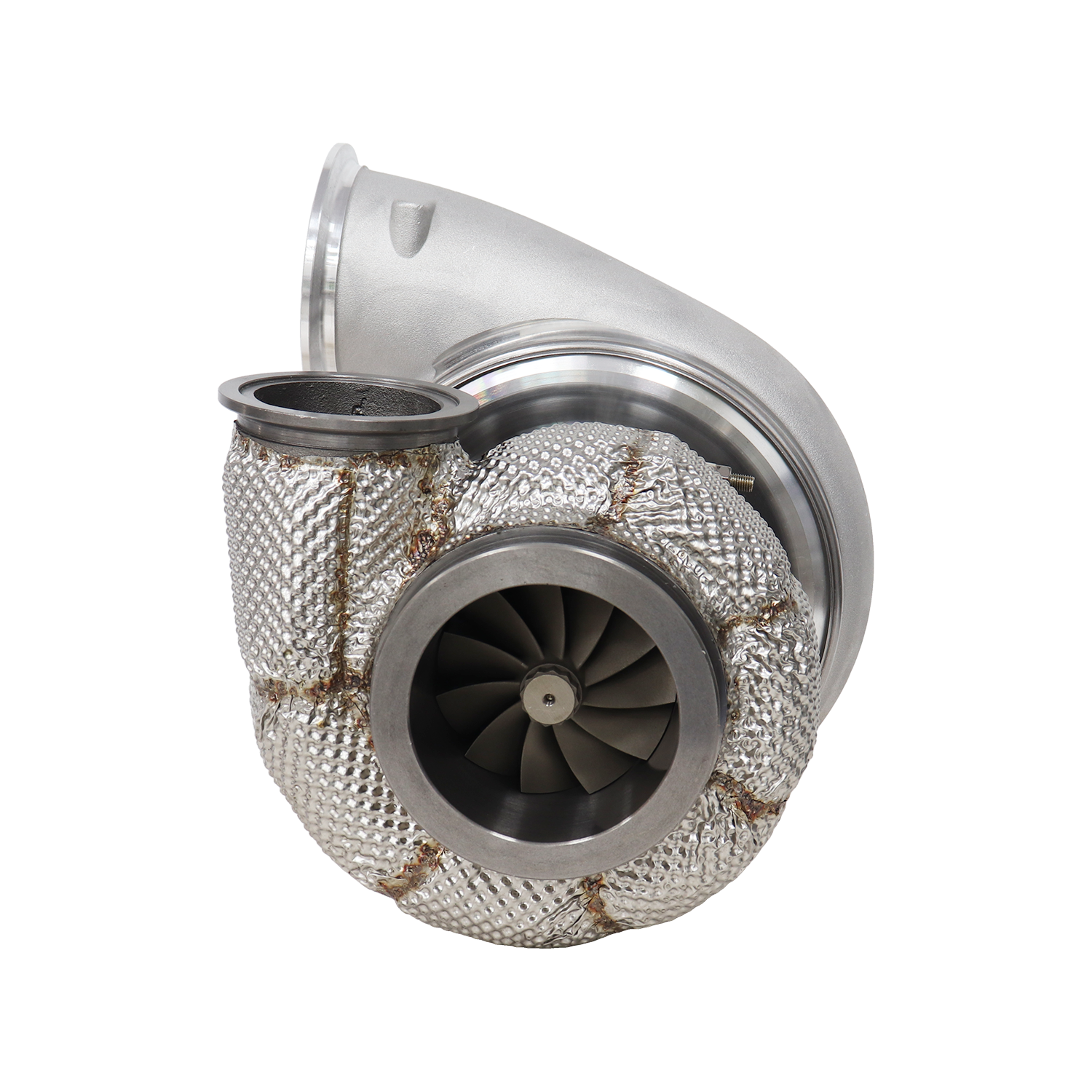

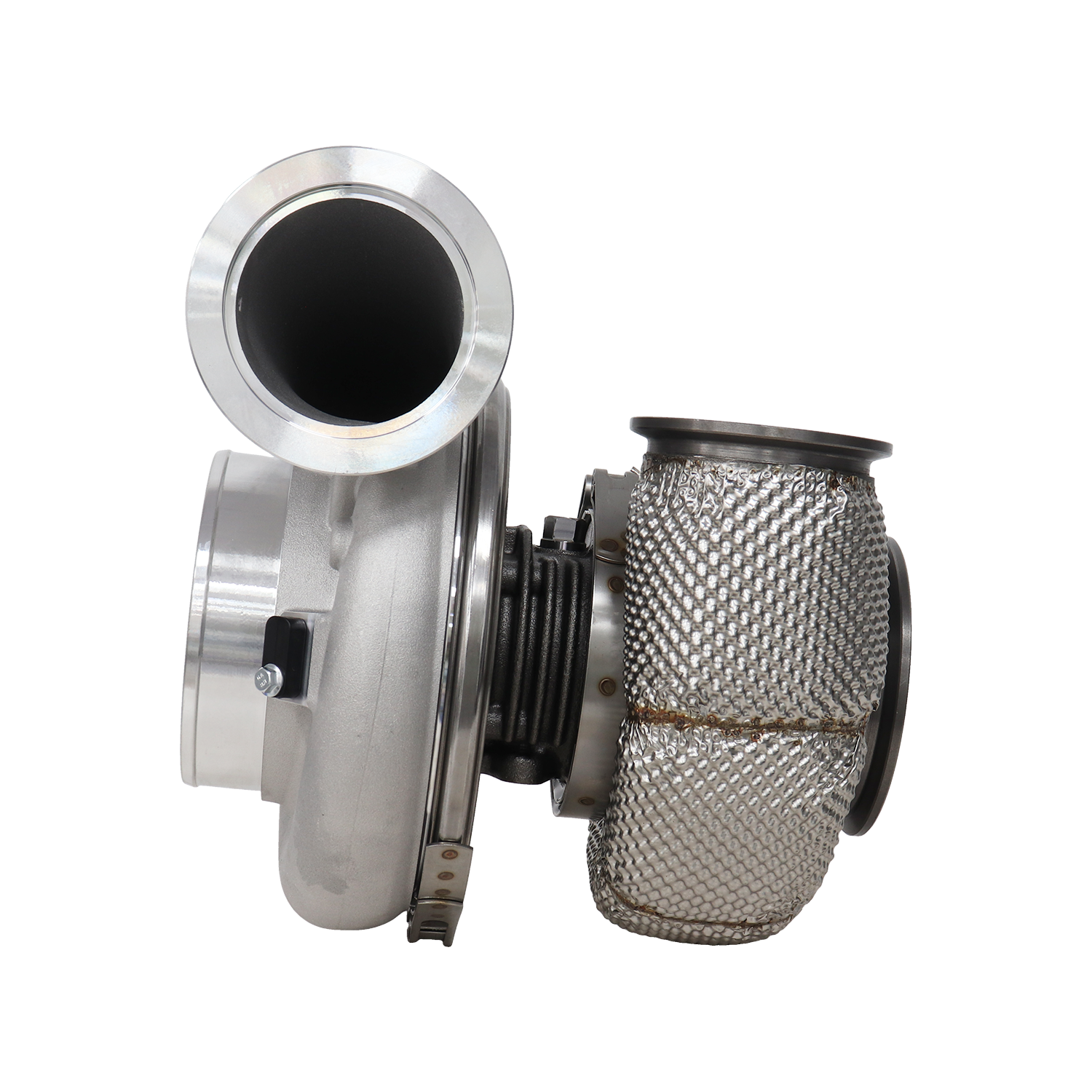

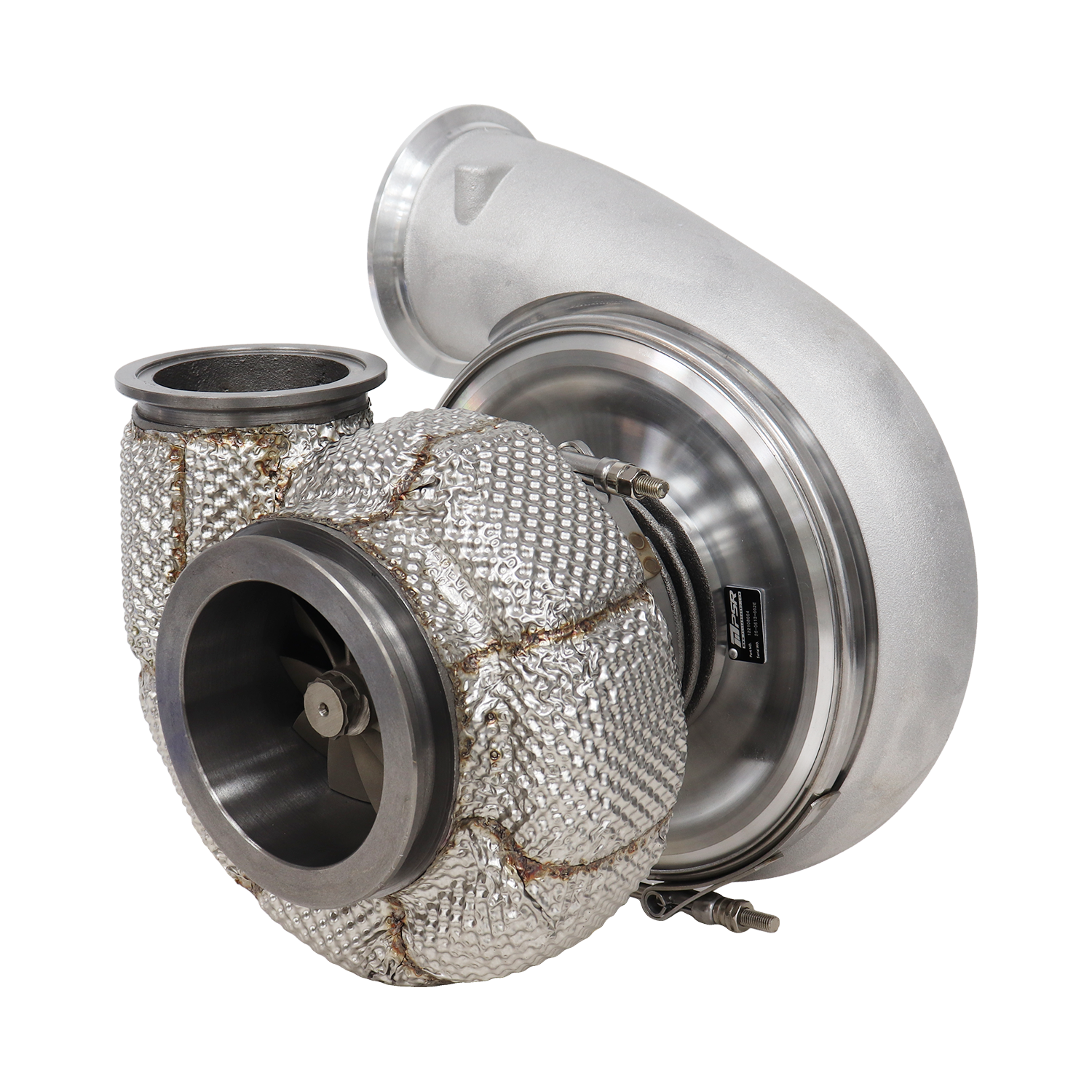

• Stainless Steel Wrapped Turbine Housing — +$200 USD

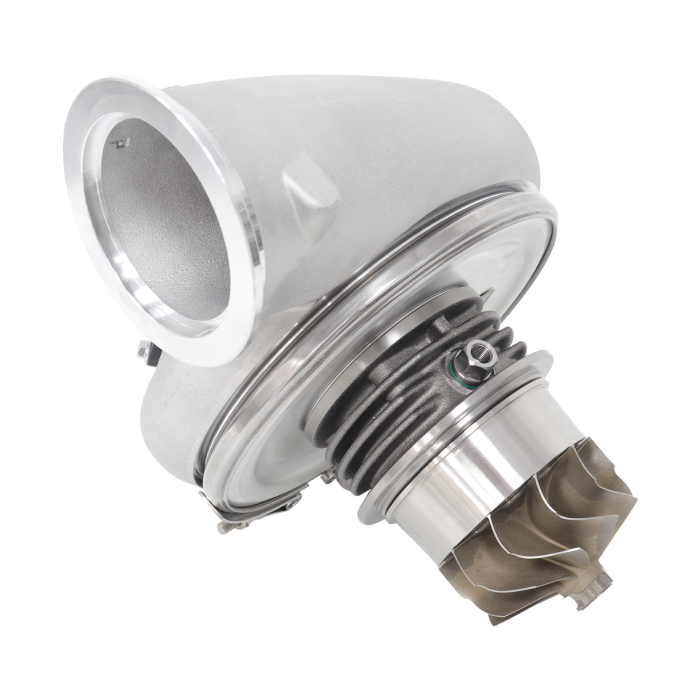

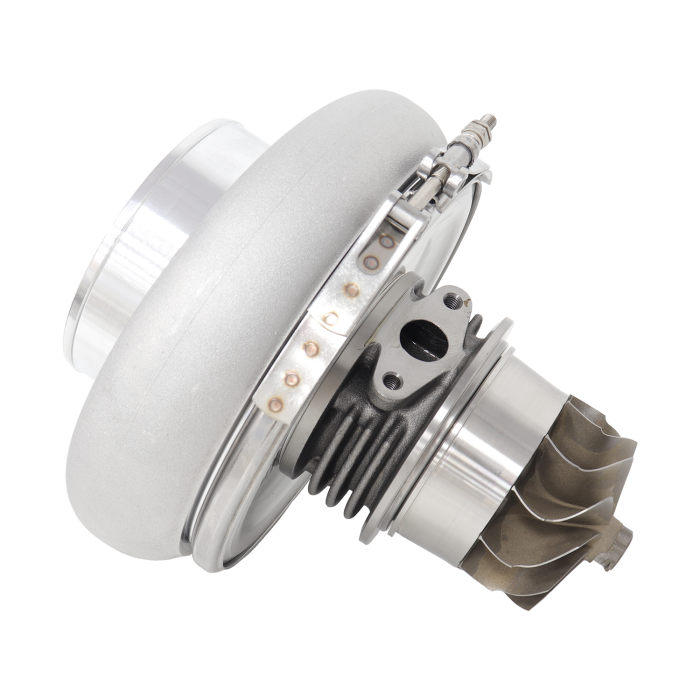

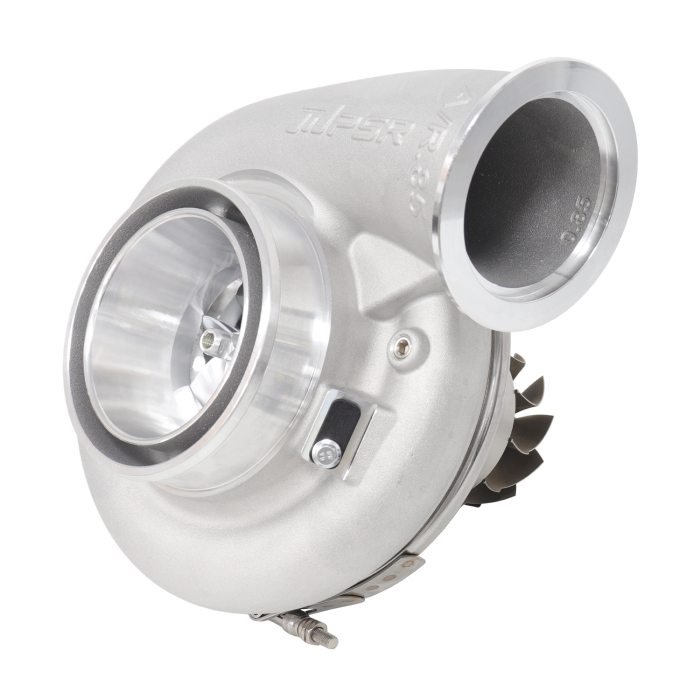

• Not Applicable — for configurations supplied without a turbine housing

(Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)
