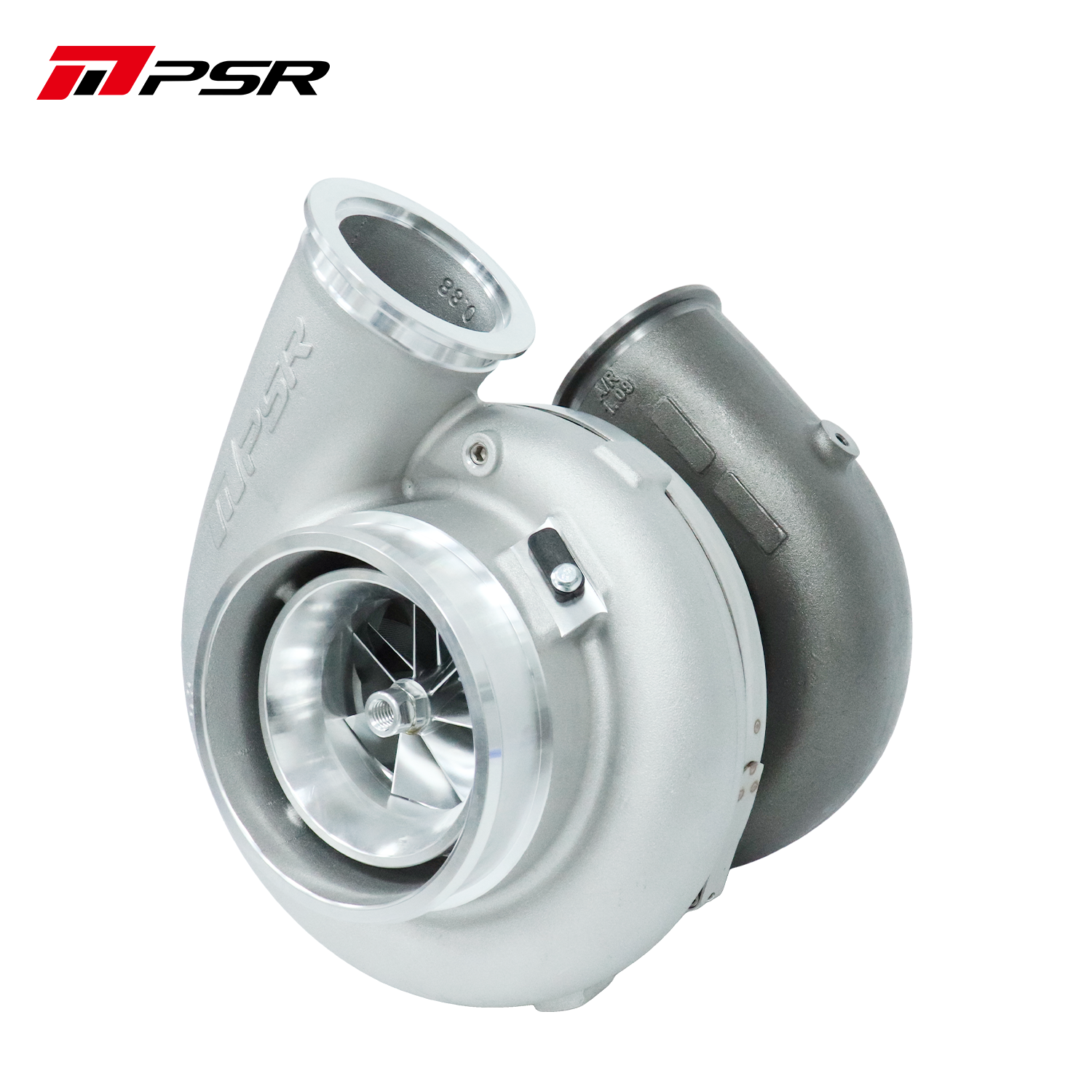

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 2

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 3

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 4

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 5

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 6

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 7

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 8

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race - Image 9

PSR 8806GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race

US Price range: $1,079.99 through $1,844.99

Free standard delivery on orders over $100

View delivery & returns options

7+7 Blade GR compressor wheel will get more air flow
9 Blade PTG-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, with 0.25 inches MWE Groove, cover integrated with the speed sensor and pressure ports
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
4 Options in Turbine Housing
Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included
Max Engine HP: 2350

Compressor Housing Options

Turbine Housing Options

Clear

SKU N/A Category PTG Series Tags drag racing classes, Sport Front Wheel Drive, Street Fighter, Super Street, Ultimate Street

Description

Compressor Wheel: 88.9*133mm, 7+7 Blade
Turbine Wheel: 112*106mm
Oil Feed: See graph below(OIL INLET), an oil feed flange included: -4AN ∅ 1.65mm (0.065″) Orifice
Oil Drain: See graph below(OIL OUTLET)

Compressor Inlet: 6″ Hose
Compressor Outlet: 4″ V-Band
Turbine housing option:

1. T6(Open) inlet, Vband outlet (fits 5″ OD tubing), 1.08 A/R
2. T6(Open) inlet, Vband outlet (fits 5″ OD tubing), 1.23 A/R
3. Vband inlet (fits 3.5″ OD tubing) and Vband outlet (fits 5″ OD tubing), 1.08 A/R
4. Vband inlet (fits 3.5″ OD tubing) and Vband outlet (fits 5″ OD tubing), 1.24 A/R

Additional information

Weight	N/A
Dimensions	34 × 34 × 39 cm
Compressor Housing Options	Standard, T51R MOD, W/O Compressor Housing
Turbine Housing Options	W/O Turbine Housing, T6 Open 1.08A/R, T6 Open 1.23A/R, Dual Vband 1.08A/R, Dual Vband 1.24A/R
