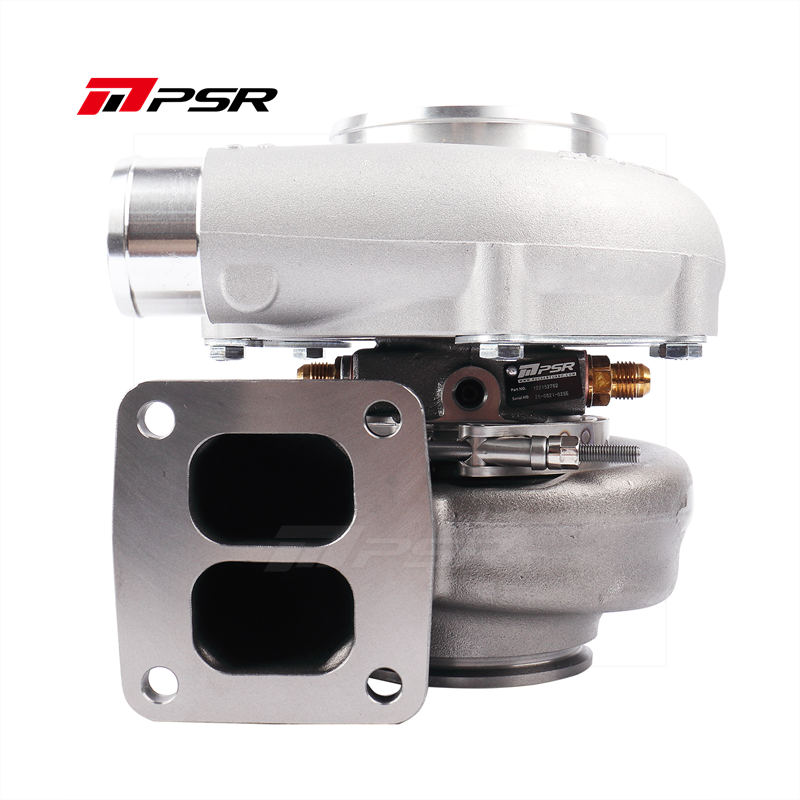

PSR Forward Rotation 5862G Dual Ball Bearing Turbocharger HP Rating 770 -

Rotation Options

Compressor Housing Options

Turbine Housing Options

Turbine Housing Heat Shield

Clear

Description

Compressor Wheel: 58*71mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4” Hose
Compressor Outlet: 2” Hose
Turbine Inlet: T3/T4/V-Band
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
7 options of turbine housing: T3 0.83A/R; T4 0.82A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T4 divided 0.85A/R; T3 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T3); T4 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T4)

Weight	N/A
Dimensions	N/A
Rotation Options	Forward Rotation
Compressor Housing Options	Standard, T51R Mod, W/O Compressor Housing
Turbine Housing Options	W/O Turbine Housing, T3 Inlet, Vband Outlet, 0.83A/R, T3 divided Inlet, V-band Outlet, 0.86A/R, T4 open 0.63A/R Stainless Steel, T4 Inlet, Vband Outlet 0.82A/R, T4 Divided 0.85A/R, T4 Divided 1.06A/R, Dual Vband 0.83A/R, Dual Vband 1.01A/R, T3 1.01A/R(Dual vband 1.01A/R + An adapter Vband to T3), T4 1.01A/R(Dual vband 1.01A/R + An adapter Vband to T4), Stainless Steel .82A/R DUAL V-BAND W/O IWG, Stainless Steel .82A/R T3 W/O IWG(+Vband to T3 Adapter), Stainless Steel .82A/R T4 W/O IWG(+Vband to T4 Adapter)
Turbine Housing Heat Shield	None, With Stainless Steel Cover
